| Puncture
Device for threaded disposable cartridges |
 Leland’s
Original High Pressure Puncture Device provides
for safe puncturing of threaded disposable
gas filled cylinders.
- Two female
outlets are stocked, 1/8 NPT or
.305 tire valve stem
- Three female thread sizes for
the puncture inlet; 3/8-24UNF,
1⁄2-20UNF, 5/8-18UNF
- Hardened stainless puncture
pin for repeatability
- Sintered screen filter behind
pin prevents particulate contamination >20 Microns
- Mountable with a bracket and
1-12UN nut
|
| Specifications
- Two female
outlets are stocked, 1/8 NPT or
.305 tire valve stem
- 416 Stainless Steel
- Inlet Pressure (max) 206 Bar,
3000 psi
- Inlet Pressure (max) 206 Bar,
3000 psi
- Sintered Screen Micro Port Filter
installed behind puncture pin
|
ORDER MOUNTABLE OR NON MOUNTABLE |
 CROSS SECTION VIEW
|
DETAIL
VIEW |
| WARNING:
These devices are NOT intended to be connected to refillable
PAINTBALL cylinders. If you need such a device, please contact
us so that we can help us obtain the correct item. These
devices DO NOT control pressure from the gas cylinder,
the purchaser of the equipment assumes all responsibility
for the resulting effect of high pressure after the
outlet of our devices. |
(Click
on photos below to enlarge or see multiple views)

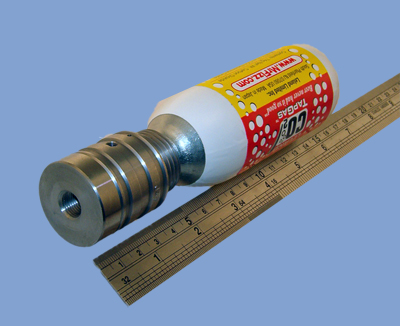

Mountable Puncture Device (bracket
and nut sold separately) |
 GENERAL
DESCRIPTION: High
strength mounting for all sized threaded disposable
cylinders. The 65026 series mountable puncture
devices accept 3/8”-24UNF, 1⁄2”-20UNF
and 5/8”-18UNF threaded neck cylinders. The puncture
pin and seal are designed to cleanly puncture the cylinder
without initial gas loss. There is a primary gas relief
hole near the seal so that removing a cylinder with
gas remaining is immediately obvious by the loud hissing
noise.
Select a 1/8”NPT outlet and connect it to virtually
anything. This device is only intended to safely puncture
a disposable gas filled cylinder; it is incumbent
upon the user to properly control the gas pressure
coming out of the cylinder. If you need to reduce
the gas pressure from one of our cylinders, please
go to our
REGULATOR
section as these also have the capability to puncture
and seal. For
bracket and retaining nut please scroll down. |
| Item # |
View |
Cylinder Inlet
Thread |
Outlet
Port
|
65026-18Y58 |
 |
5/8”-18UNF |
1/8" NPT |
65026-305Y58 |
|
5/8”-18UNF |
.305 Tire |
65026-18Y12 |
|
1/2"-20UNF |
1/8" NPT |
65026-305Y12 |
|
1/2"-20UNF |
.305
Tire |
65026-18Y38* |
|
3/8”-24UNF*
*requires P/N 50037 bushing |
1/8" NPT |
65026-305Y38* |
|
3/8”-24UNF*
*requires P/N 50037 bushing |
.305
Tire |
(Click on photos
below to enlarge or see multiple views)
|
Non-mounted
Puncture Device |
 GENERAL
DESCRIPTION:
High strength
mounting for all sized threaded disposable cylinders.
The
65026 series non-mountable puncture devices
accept 3/8”-24UNF, 1⁄2”-20UNF and
5/8”-18UNF threaded neck cylinders. The puncture
pin and seal are designed to cleanly puncture the cylinder
without initial gas loss. There is a primary gas relief
hole near the seal so that removing a cylinder with
gas remaining is immediately obvious by the loud hissing
noise.
Select a 1/8”NPT outlet and connect it to virtually
anything. This device is only intended to safely puncture
a disposable gas filled cylinder; it is incumbent
upon the user to properly control the gas pressure
coming out of the cylinder. If you need to reduce
the gas pressure from one of our cylinders, please
go to our REGULATOR
section as these also have the capability to puncture
and seal. |
| Item # |
View |
Cylinder Inlet
Thread |
Outlet
Port
|
| 65026-18N58 |
 |
5/8”-18UNF |
1/8"
NPT |
65026-305N58 |
|
5/8”-18UNF |
.305 Tire |
65026-305N12 |
|
1/2"-20UNF |
.305
Tire |
65026-18N12 |
|
1/2"-20UNF |
1/8" NPT |
65026-305N38* |
|
3/8”-24UNF*
*requires P/N 50037 bushing |
.305
Tire |
65026-18N38* |
|
3/8”-24UNF*
*requires P/N 50037 bushing |
1/8" NPT |
(Click on photos
below to enlarge or see multiple views)
Puncture
Devices for Non-threaded Cylinders |
  Solid
Brass and Stainless Steel construction to accept all
10cc non-threaded cylinders. Used widely to clear
heating oil lines in the Northeast and A/C condensate
drain lines everywhere else. |
| Item # |
Outlet
Port |
Description
|
| 51008 |
1⁄4” NPT |
|
Any non threaded
8g CO2 or N20 cartridge can be punctured by placing
it in the screw-on holder and turning down onto the
hex puncture block. 1⁄4” NPT female outlet
with an anti-blowback check valve is built in. Solid
brass construction with a heat treated puncture pin
makes this a classic tool used for clearing oil lines,
A/C drains and many more applications. |
| WARNING: This device DOES NOT control
pressure from the gas cylinder, the purchaser of the
equipment assumes all responsibility for the resulting
effect of high pressure after the outlet of our device. |
(Click on photos below
to enlarge or see multiple views)
Accessories |
Item
# |
Item
Name |
Description
|
65027 |
Bracket |
|
Mounting bracket
for 65026 series puncture devices which have the mounting
option. 18-8 Stainless heavy gauge designed with proper
offset to allow our larger 2.40” diameter cylinders.
Don’t forget to order the correct nut, P/N 65028. |
| 65028 |
Nut |
|
Big 1-12 Nut,18-8 Stainless,
to secure a mountable 65026 series puncture device
to a 65027 bracket. |
