Dispensing Valves

Dispensing valves by Leland can reduce pressure output and flow.
They can also filter and meter gas to your requirements.

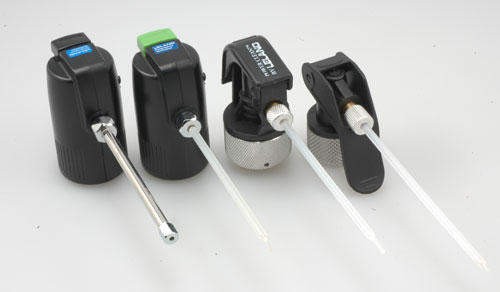

Devices shown with fitted with removable nozzles.
Many fittings and configurations can be accommodated.



Dispensing Valves
Item #
Item Name
View Inlet Size
Description
87100
PowerClean
Generation X
Red Button Valve
5/8”-18UNF Female** Can be reduced to 3/8”-24UNF female with bushing P/N 50037. Approved for use on manned space flight by NASA and often seen on the sets of major motion pictures, this valve is the ultimate in delicate particle removal when used with eour 52101 74g CO2 cylinders. Integral puncture pin with no gas loss upon puncturing, side lock button to prevent discharge while in gadget bag or tool box. The valve has very smooth feather touch control for very light gas dispensing through the two provided nozzles, one has tapper tip and the other is a straight bore for general use. The outlet pressure on this valve is very low, <300psi.
87100-001
PowerClean
Generation X
Black Button Valve
50003 5/8”-18UNF Female** Can be reduced to 3/8”-24UNF female with bushing P/N 50037. Approved for use on manned space flight by NASA and often seen on the sets of major motion pictures, this valve is the ultimate in delicate particle removal when used with our 88123 high pressure Nitrogen cylinders. Integral puncture pin with no gas loss upon puncturing, side lock button to prevent discharge while in gadget bag or tool box. The valve has very smooth feather touch control for very light gas dispensing through the two provided nozzles, one has tapper tip and the other is a straight bore for general use. The outlet pressure on this valve is very low, <300psi.
87000
PowerClean
ProSeries
Green Button Valve
50011 5/8”-18UNF Female** Can be reduced to 3/8”-24UNF female with bushing P/N 50037. Integral puncture pin with no gas loss upon puncturing, side lock button to prevent discharge while in gadget bag or tool box. The valve has very smooth feather touch control for very light gas dispensing through the two provided nozzles, one has tapper tip and the other is a straight bore for general use. The outlet pressure on this valve is not controlled, only a restricted orifice slows the flow.

NEW

New Dispense valve
beta testing

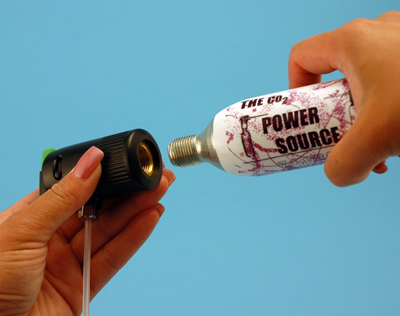

Uses non threaded 16g CO2 Although shown with a nozzle, this innovative valve will adapt to almost anything. We have been working on this for many years, it takes time to overcome performance vs. cost hurdles.
